FEATURES & APPLICATIONS
Features
- More flexibility and productivity with interchangeable chucks - innovative chuck design allows for different chucks to be swapped out in seconds (thread tapping M3-M16, self-tightening chuck, universal chucks)
- Better performance in metal - higher RPM of 2460 combined with soft joint torque (60Nm) and four speeds enable the cordless drill driver to handle demanding metal drilling and screwdriving with ease
- More peace of mind - specialized chuck with self-tightening function designed for metal drilling protects against drill bit slippage
- Safer work environments - Hilti's Active Torque Control (ATC) helps prevent the tool body from uncontrolled spinning if the drill bit sticks and an LED work light in the base provides a clear view of your work area
- Increased dependability - a powerful battery and brushless motor allow for more drilling and driving per charge at consistently high speeds
Applications

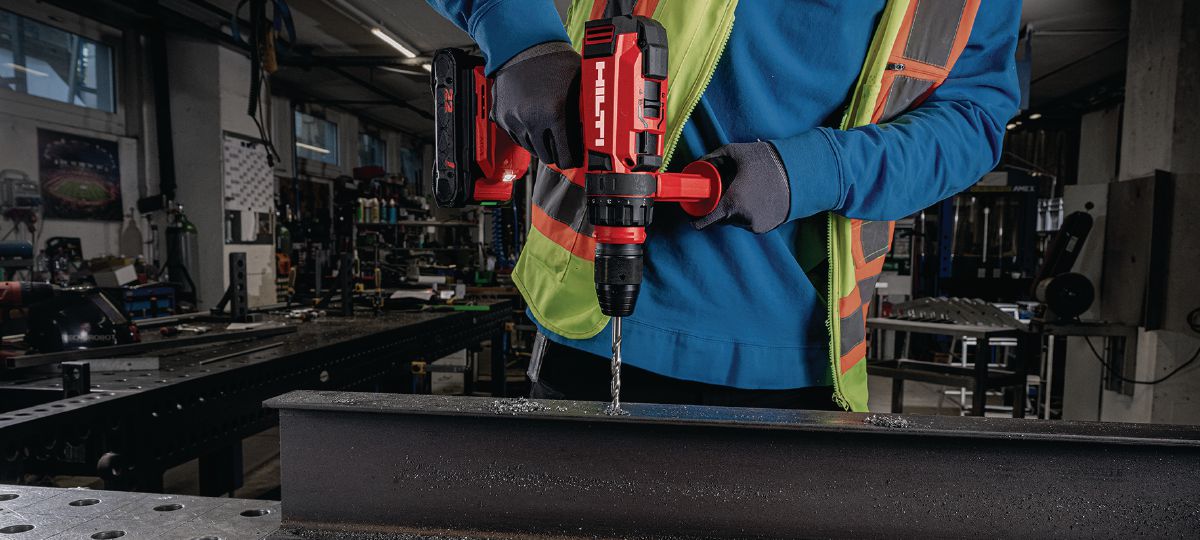

- Drilling in metal with HSS bits up to 20 mm diameter
- Drilling in sheet metal up to 3 mm thick with step drill bits up to 40 mm diameter
- Drilling holes in metal using hole saws up to 102 mm

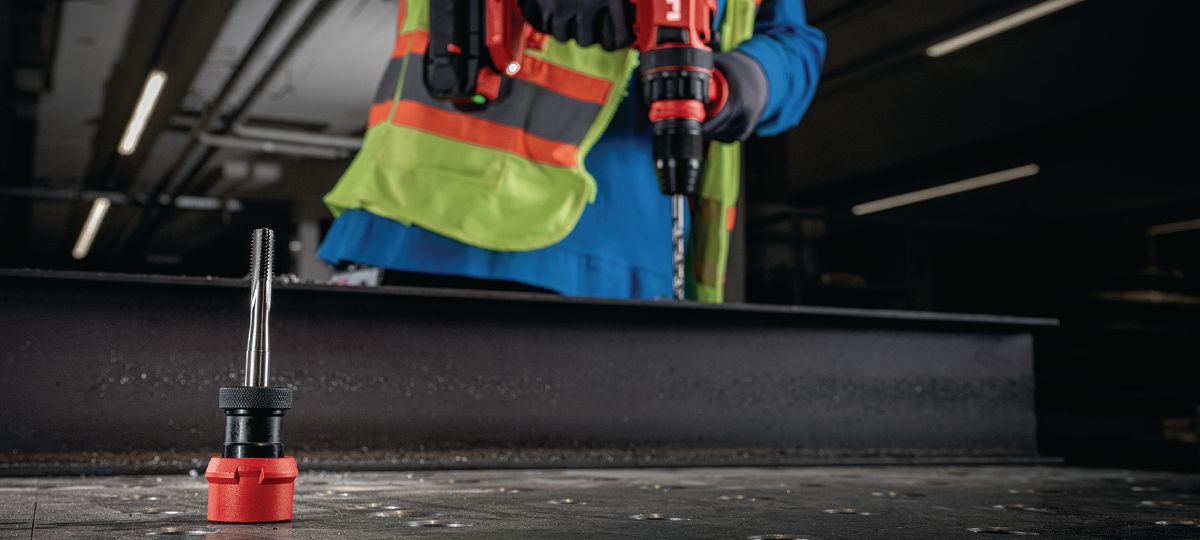

- Thread tapping up to size M16 (square shank bits suitable with thread tap chucks)
- Countersinking in metal up to 31 mm diameter
PRODUCT INFORMATION

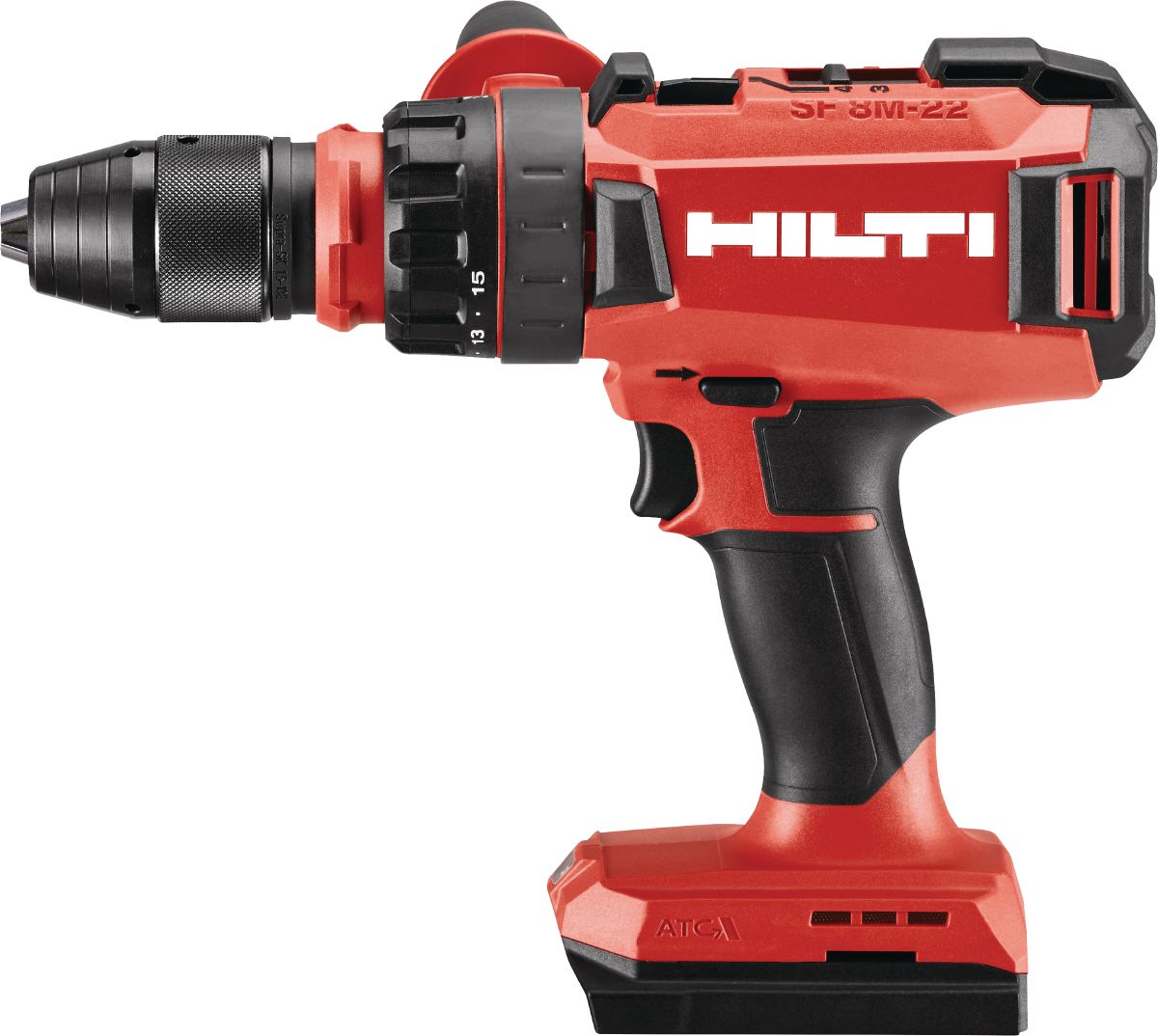

Cordl. drill driver SF 8M-22 box
- Item Number: 2360543
- # of items in Package: 1
TECHNICAL DATA
- Maximum torque (soft/hard joint) :55 Nm (soft joint), 75 Nm (hard joint)
- No load RPM :gear 1: 365 rpm; gear 2: 625 rpm; gear 3: 1440 rpm; gear 4: 2460 rpm
- Chuck clamping range :2 - 13 mm
- Number of gears :4
- Torque increments :15
- Dimensions (LxWxH) ;242 x 69 x 226 mm
- Tool body weight :1.9 kg
- A-weighted emission sound pressure level :78 dB (A)
- Rated voltage :21.6 V
- Triaxial vibration value for drilling into metal (ah,D) :1.6 m/s²
