FEATURES & APPLICATIONS
Features
- Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- High versatility for a wide range of drilling and chiseling applications
- Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite
- OSHA 1926.1153 Table 1 compliant when used with the TE DRS-Y and TE DRS-D dust removal system and a Hilti vacuum cleaner
Applications
- Medium-duty demolition work
- Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3-1/8")
- Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter
PRODUCT INFORMATION

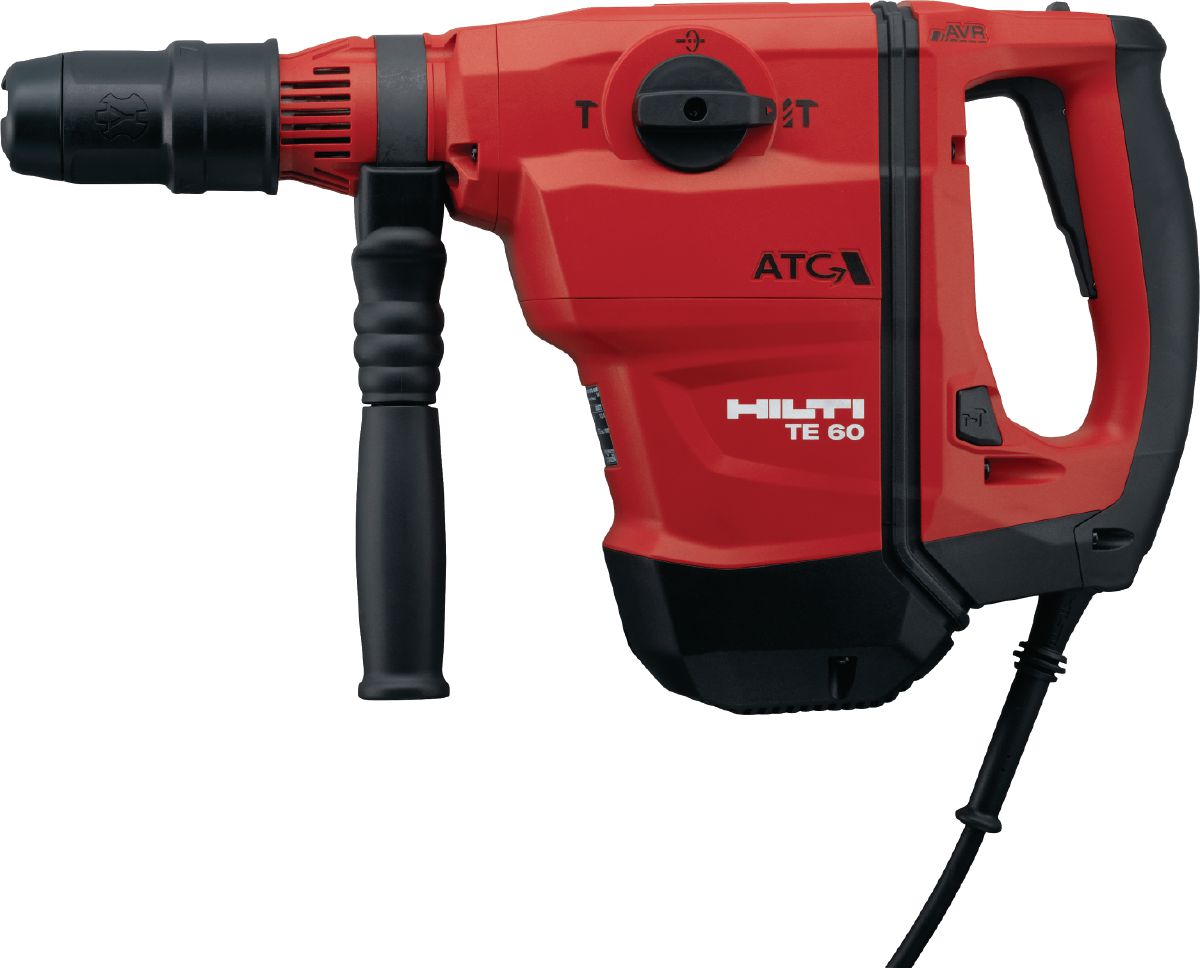

Corded Rotary Hammer TE 60-ATC/AVR 120 V
- Item Number: 2132224
- # of items in Package: 1
TECHNICAL DATA
- Weight according EPTA-Procedure 01/2003 without battery :17.2 lb
- Single impact energy :5.8 ft-lbs
- Rated current :13 A
- Hammer drilling diameter range :15/32 - 3-15/16 in
- Optimum Hammer drilling range : 23/32 - 1-9/16 in
- Hammer drilling RPM : 340 rpm
- Full hammering frequency : 3300 impacts/minute
- Functionality : Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Depth gauge, Power reduction
- Triaxial vibration value for hammer drilling into concrete (ah,HD) : 7.2 m/s²
- Dust removal system available :TE DRS-Y, TE DRS-D, TE DRS-BK
- Triaxial vibration for chiseling into concrete : 6.2 m/s²
- Rated input power :1350 W
- Dimensions (LxWxH) :19.4 x 4.5 x 11.5 mm
- A-weighted emission sound power level: 111 dB (A)
- A-weighted emission sound pressure level : 103 dB (A)
